Small coal crushers are used to crush various types of coal and are applied in power plants, industrial boilers, construction, metallurgy and other fields. For small and medium-sized enterprises, small coal crushers can meet their production needs. They are lightweight, occupy less space and are more convenient to operate. What are the models? How much is one set?
What are the models of coal crusher?
Hammer Crusher
Feeding size: ≤50mm
Production capacity: 7-156t/h
| Model | Feed Size(mm) | Discharge Size(mm) | Capacity(m³/h) | Power(kw) | Dimension(mm) | Weight(kg) |
| PCΦ400×175 | <50 | <3 | 0.3 | |||
| PCΦ600×400 | <100 | <15 | 7 | 15 | 1000×980×1120 | 1445 |
| PCΦ600×600 | <100 | <15 | 9 | 37 | 2245×1160×9700 | 3100 |
| PCΦ600×1200 | <350 | <25 | 18 | 37 | 3000×1700×1180 | 3750 |
| PCΦ800×600 | <200 | <10 | 15 | 55 | 1234×1360×11200 | 3480 |
| PCΦ800×800 | <200 | <15 | 20 | 75 | 1432×1360×1120 | 4100 |
| PCΦ1000×800 | <200 | <15 | 30 | 115 | 1500×2230×1515 | 6700 |
| PCΦ1000×1000 | <200 | <15 | 43 | 130 | 3690×2230×1515 | 8652 |
| PCΦ1250×1250 | <200 | <20 | 62 | 180 | 2424×2280×1942 | 14000 |
| PCΦ1400×1400 | <250 | <20 | 106 | 280 | 5306×3440×2475 | 32000 |
| PCΦ1600×1600 | <350 | <20 | 156 | 480 | 5800×3780×2700 | 37500 |
By adopting the new concept crushing technology, relying on the impact effect of the hammer heads, hammer crusher can complete the crushing of materials of different sizes in one time, simplifying the work process and increasing the workload. By changing the cavity type, it can achieve the conversion between coarse, medium and fine crushing, eliminating the initial crushing process, with a high yield rate, no flaky or multi-angular products. The gap of the grate bars can be adjusted as required to change the particle size of the output, solving the traditional problems of easy clogging, easy jamming and low output.
Double Roller Crusher
Feeding size: ≤36mm
Production capacity: 1-12t/h
| Type | Model | Feed Size(mm) | Discharge Size(mm) | Capacity(m3/h) | Power | Dimension(mm) | Weight(kg) |
| Strong Double Roller Crusher | 2PGQ 610×400 | <36 | 2-9 | 3-9 | 18.5×2 | 2085×3090×802 | 4130 |
| 2PGQ 750×500 | <40 | 2-10 | 3-16 | 18.5×2 | 2344×1900×1605 | 9600 | |
| 2PGQ 750×700 | <40 | 2-10 | 5-25 | 22×2 | 2344×2318×1605 | 10650 | |
| 2PGQ 750×1000 | <40 | 2-10 | 6-30 | 30×2 | 2344×2410×1705 | 13360 | |
| 2PGQ 900×500 | <40 | 2-10 | 5-26 | 22×2 | 2750×1956×1662 | 15000 | |
| 2PGQ 900×900 | <40 | 2-10 | 11-45 | 37×2 | 2750×2356×1662 | 16790 | |
| 2PGQ 900×1200 | <40 | 3-10 | 15-60 | 55×2 | 2750×2656×1662 | 20800 | |
| 2PGY 1200×1000 | <40 | 2-12 | 15-60 | 45×2 | 3476×2894×2200 | 39000 | |
| 2PGY 1200×1200 | <40 | 2-12 | 18-68 | 75×2 | 3476×3117×2200 | 42000 |

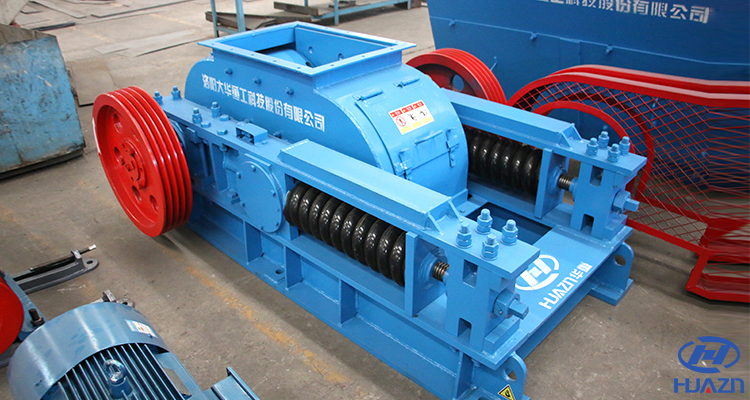

Roller crusher adopts a roller design, using the strong pressure of two rollers rotating in opposite directions to crush the materials. Moreover, a wedge-shaped or gasket adjustment device is installed between the two rollers. The wear cycle of the roller skin is long, and the vulnerable parts are made of new high-strength wear-resistant materials, which have low wear and a long service life.
How much is a coal crusher?
From the above introduction, it can be seen that there are many types of small coal crushers. With differences in models and various parameters, the prices will vary across different models. In addition, brand is also an important factor affecting the price, such as whether the scale is large or not, and how advanced the technology is, and how strong the process capacity is. The customers need to take a comprehensive comparison before making decision.
Luoyang Dahua Heavy Industry is a high-tech enterprise with research & development production, sales, and service. The mobile crushing station has been successfully applied in domestic and foreign mine crushing projects. The company has a professional R & D team, a strong after-sales team, from the equipment selection, site inspection, equipment manufacturing, installation, commissioning, delivery and other aspects for your service.
